ID: 51635
Omschrijving

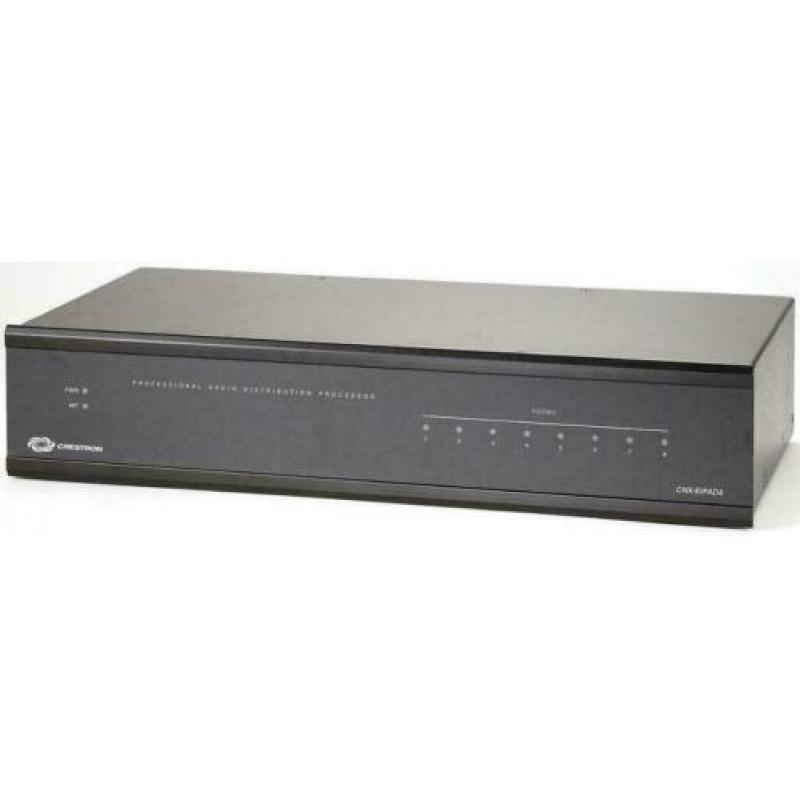

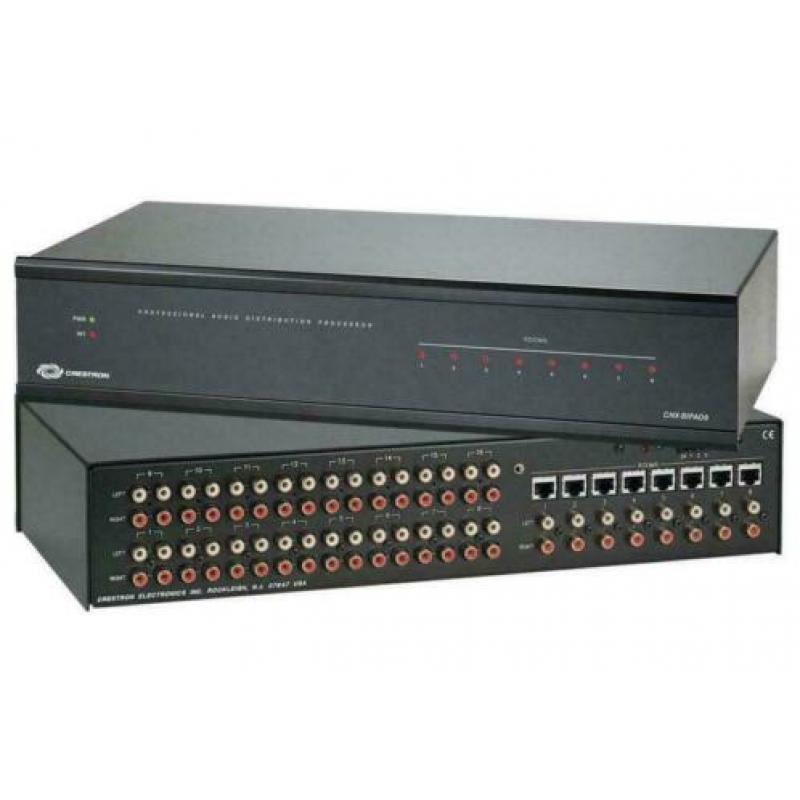

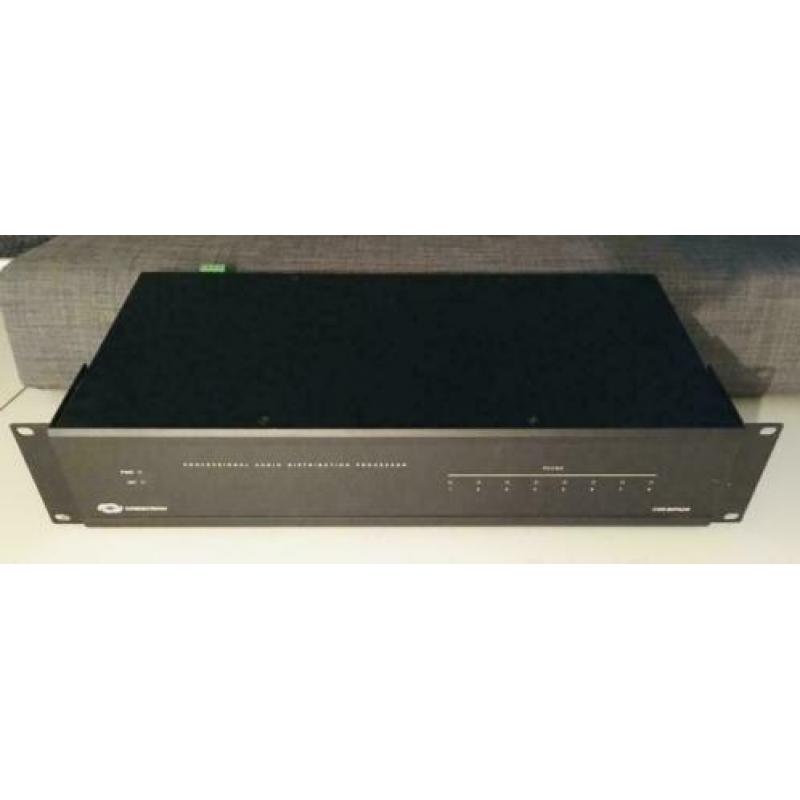

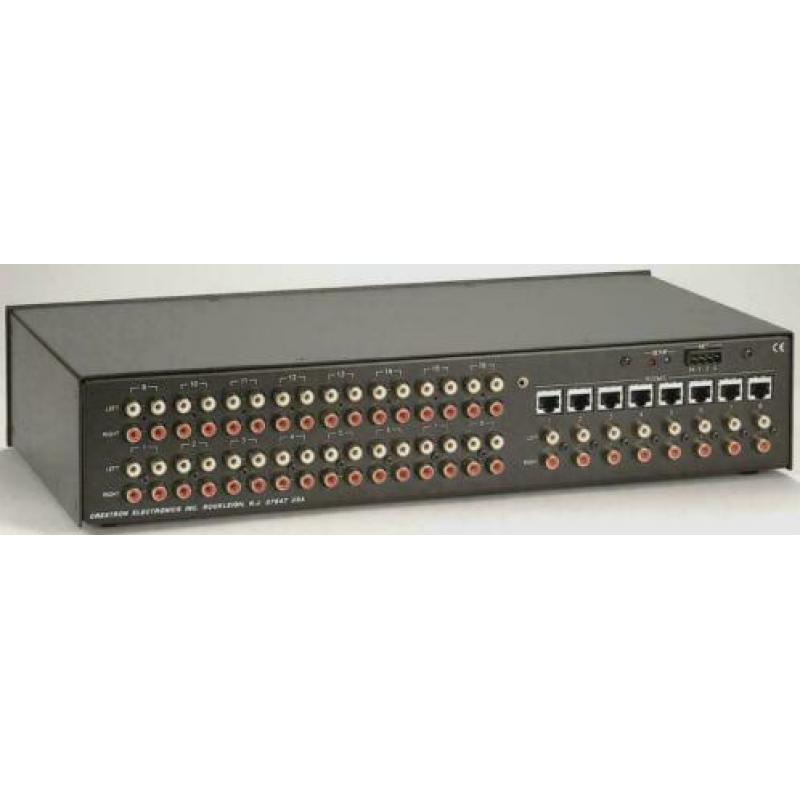

The CNX-BIPAD8 is a high performance 24 x 8 stereo audio switcher and preamplifier, providing distribution of 16 stereo audio sources and 8 room inputs to any of 8 room outputs. Every room output includes independent control over volume, bass, treble, balance, loudness, and mute. Mono summing is also built in to facilitate distribution to non-stereo zones
Key Features:
- High-performance stereo audio switcher and preamp
- Distributes 16 stereo audio sources to 8 line outputs
- RCA and RJ45 CAT5 outputs
- Combinable for up to 32 rooms
- 8 additional room return inputs via CAT5
- Volume, bass, treble, balance, loudness, and mute controls
- Programmable input gain compensation
- Selectable mono summing on each output
- Protective output mute relays
- Fully configurable in SystemBuilder software
- Controllable via Cresnet communications
Key Features:
- High-performance stereo audio switcher and preamp
- Distributes 16 stereo audio sources to 8 line outputs
- RCA and RJ45 CAT5 outputs
- Combinable for up to 32 rooms
- 8 additional room return inputs via CAT5
- Volume, bass, treble, balance, loudness, and mute controls
- Programmable input gain compensation
- Selectable mono summing on each output
- Protective output mute relays
- Fully configurable in SystemBuilder software
- Controllable via Cresnet communications
